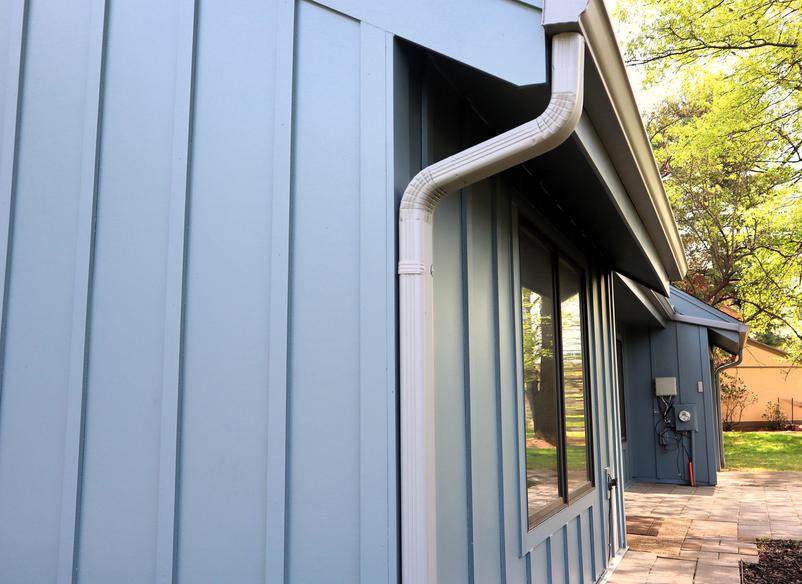

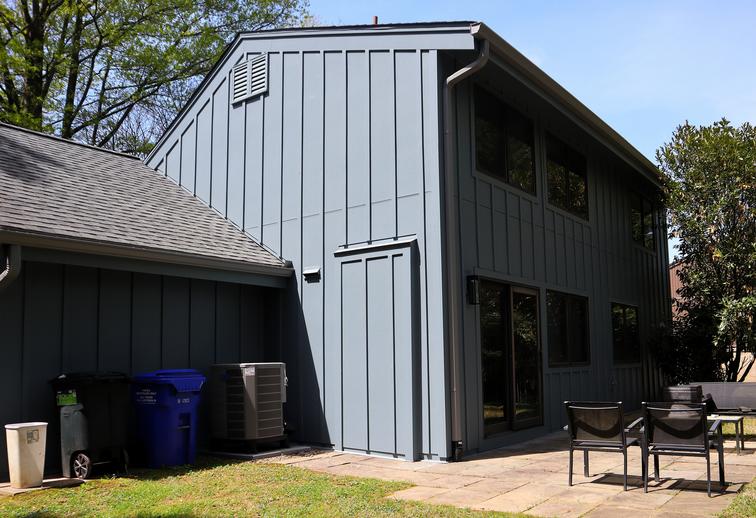

This view shows the rear corner of the home. The Boothbay Blue Hardie siding looks much lighter in direct sun light. A small bump out was added to help solve an issue with pipes freezing in the kitchen. Hardie Siding has many styles and colors to choose from. The color is baked on in the factory to avoid peeling and fading. Fiber cement siding has become a popular choice in Gaithersburg, MD.
Review by Lisa L.
Gaithersburg, MD
22
"From start to finish on our siding replacement project Custom Concepts Construction all work was completed with the highest level of quality and detail. All staff are professional and have a clear understanding about what is needed to create a beautiful finished product that made our home better than it was before.
Thank you!!!."

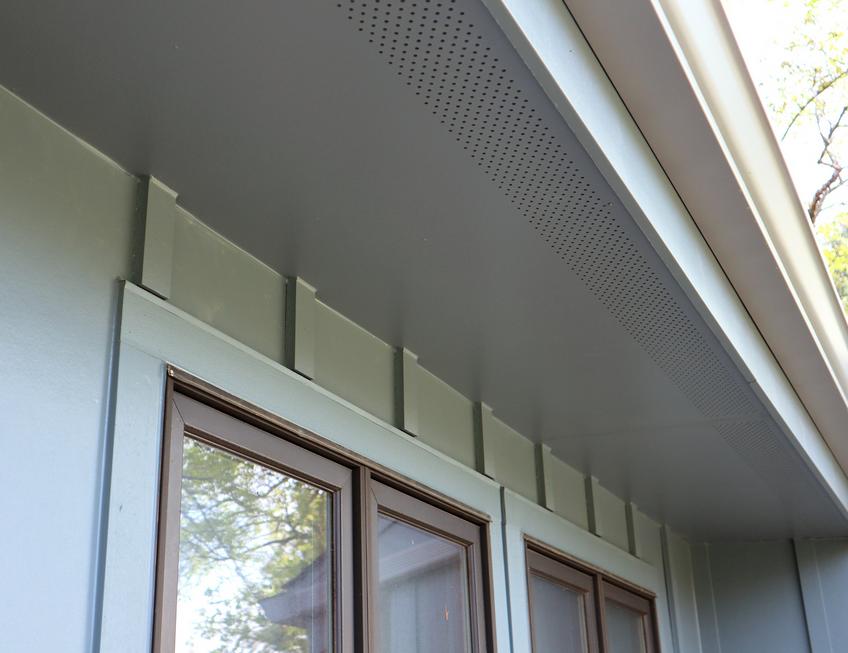

James Hardie Boothbay Blue 24" vented soffits were installed below the overhngs to proved adequate ventilation for the roof. Proper ventialation is important for roof warranties and to extend the life of existing shingles.
OVERVIEW
This home in Gaithersburg, MD had vinyl board & batten siding on the exterior. The exterior was fading, warping and collecitng mildew. The owner knew it was time for a change!
This house was built in 1972. The vinyl siding was still functional but it wasunsightly. All the original wood trim was capped with faded aluminum. The owner knew it was time to transform their exterior. After considering available options, they decided Hardie siding was the best choice to provide the costmetic appearance and durability. The owner researched many different exterior products. Hardie siding was the best option to create a wood look and meet HOA requirements. Hardie house wrap was installed to create a thermal barrier. Hardie Board & Batten siding was installed. The color of this home is Boothbay Blue. Hardie products are an excellent way to create the look of wood without the maintenance. All existing cladding and wood trim were removed and replaced with Hardie trim. This customer now has a beautiful, low maintenance exterior. Custom Concepts Construction, Inc. is an Elite Preferred Siding Contractor for James Hardie Products.
hARDIE sIDING | board & batten | boothbay blue

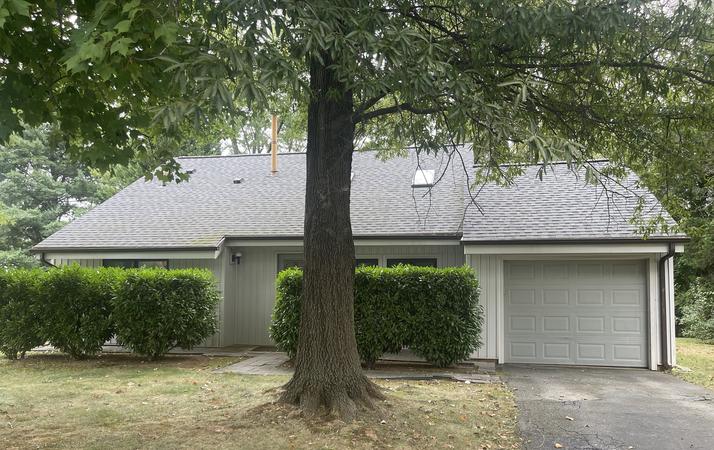

BEFORE
Looking for additional services? Hardie Siding | Roofer |Replacement Windows Site Map
Stay Connected
Custom Concepts Construction Inc.
4169 Jefferson Pike Jefferson, MD 21755 United States
+1.3013554604 | Info@MDSidingPro.com MHIC# 127288 VA License #2705159988
Siding | Roofing | Windows | Doors | Gutters

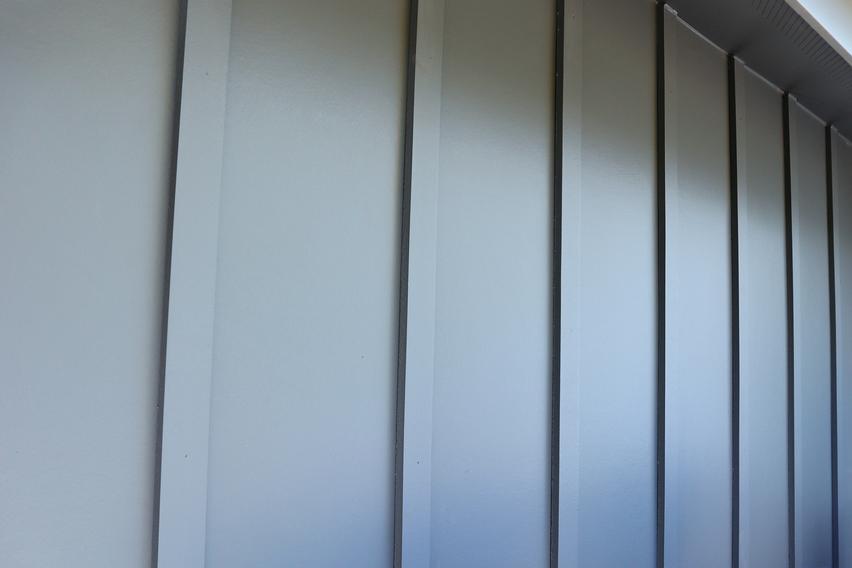

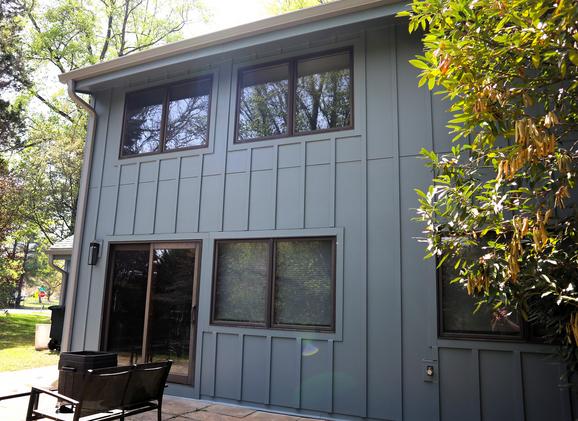

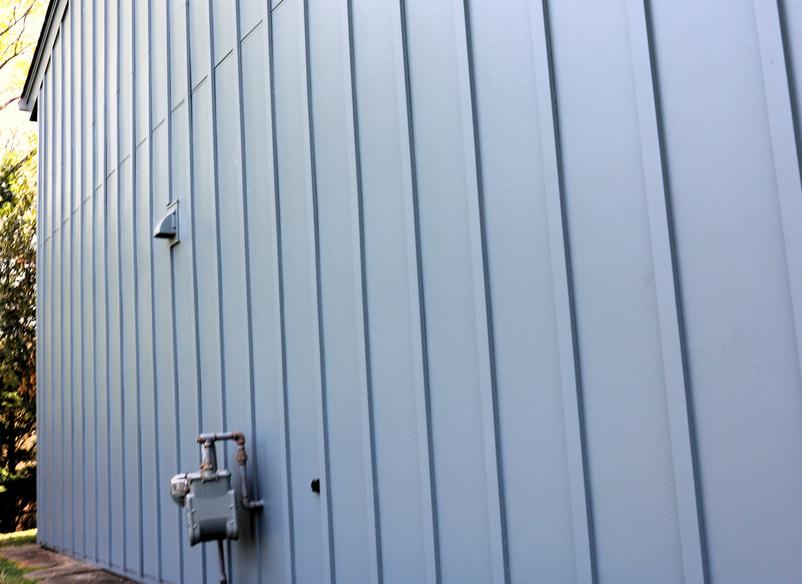

This photo shows a closer view of the Boothbay Blue Board & Batten Hardie siding. The smooth texture for board & batten is a realistic representation of real wood siding. Vertical siding is required by this Gaithersburg HOA to preserve the look of the neighborhood. Be sure to hire an Elite Preferred Siding Contactor when having Hardie products installed. This is extremely important with custom details.
Many siding contractors aren't experienced with this product line. Improper installation will void the 30 Year Hardie Warranty.

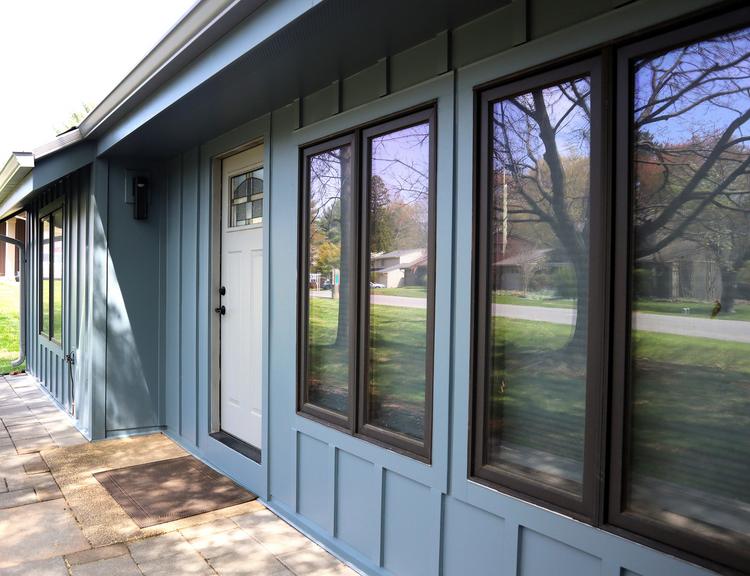

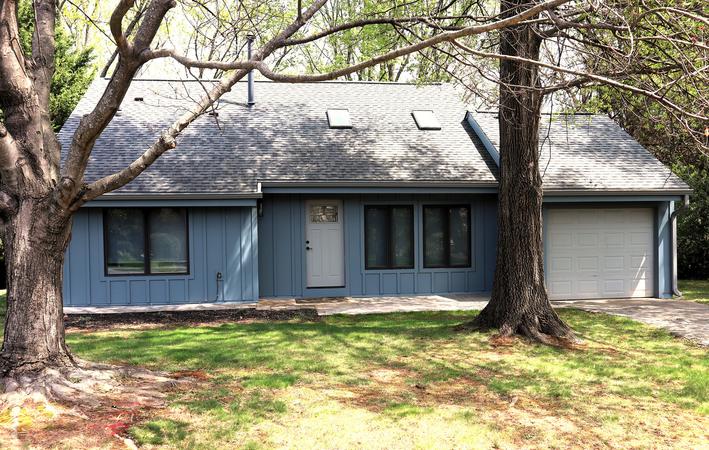

This view shows the front corner of the Gaithersburg, MD home. The brown windows frames contrast in color to the Boothbay Blue Hardie siding. The front of the house receives less sunlight than the sides. You'll notice the colors appear differently in the sun vs shade. Siding colors will appear lighter when the sun shines. The Boothbay Blue Hardie siding color is also available in the Dream Collection Trim color.

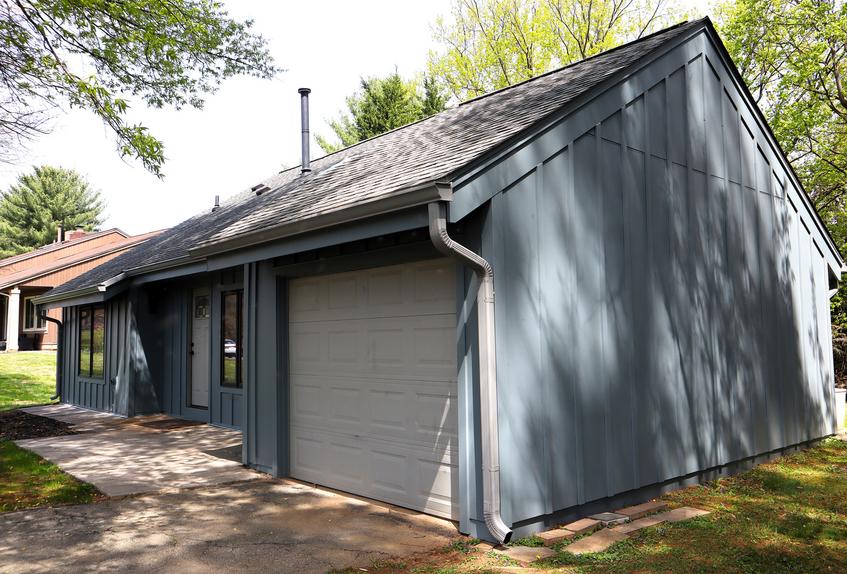

Here you see the view from the right side of the house. The Boothbay Blue siding and trim color creates a contemporary design to match the architecture. Drip edge was installed along the roofline to prevent water from getting behind the new trim.

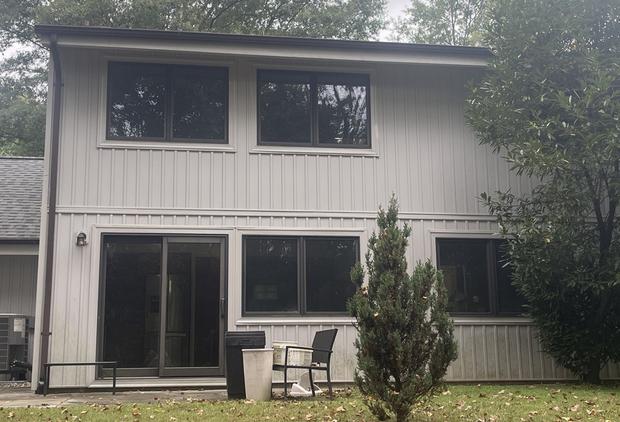

BEFORE
Hardie Board & Batten is a unique appearance. It can be used to create a contemporary style or an accent with other Hardie siding products. 16"o.c. batten spacing is very common. The Hardie siding panels need to be fastened through the sheathing and into the studs. Most wall framing is 16"o.c. This means the battens at the same spacing will cover the nail head of the panels. Small details like this can make a huge difference in the final siding product.
AFTER
AFTER
AFTER
A slight contrast was selected in the gutter color. These small details are what make your Hardie siding replacement project stand out in the neighborhoood.
Flexible Payment Options
Details
Location: Gaithersburg, MD
House Type: Traditional
Products
Siding Product:Hardie Panel Board & Batten
Siding Color: Boothbay Blue
Siding Texture: Smooth
Batten Spacing: 16"o.c.
Trim Color: Boothbay Blue
Window Detail: 4" Picture Frame
Gutter Color: Pearl Gray

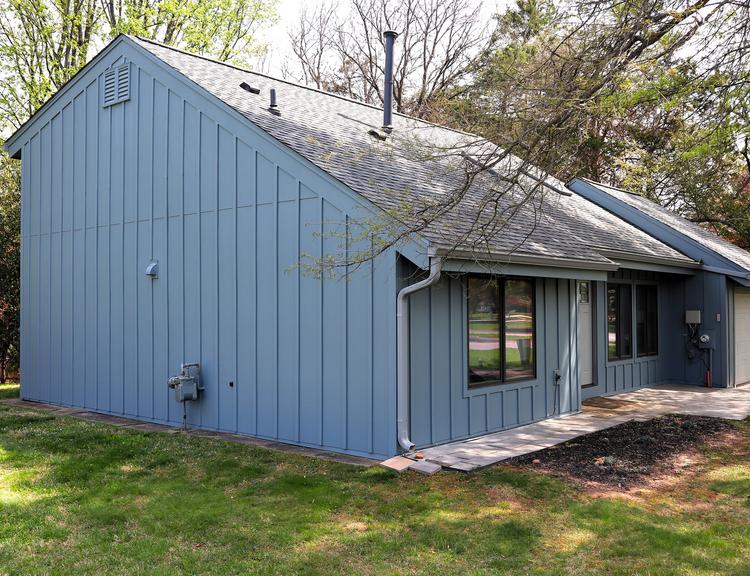

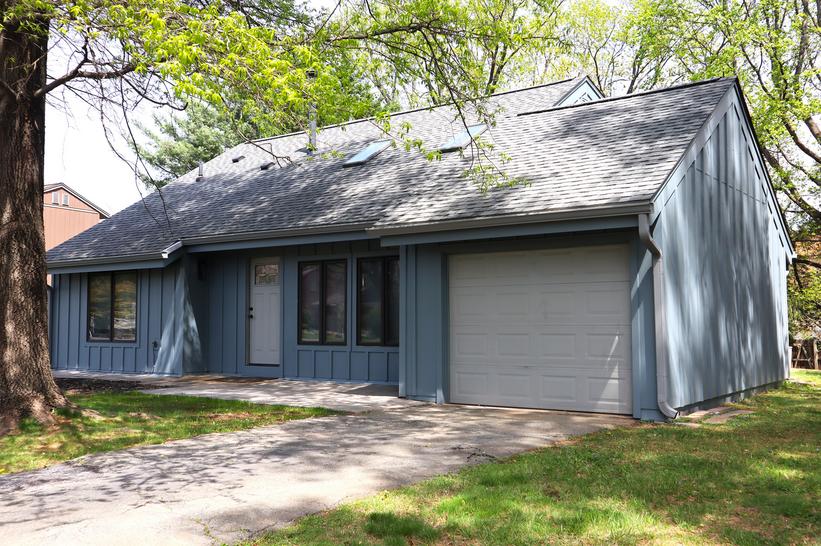

This is the front left corner view. Everything was designed to blend together so the Board & Batten Hardie Siding was the main focal point on this home. Vertical siding can also create the illusion that walls are taller than reality.
Financing Provided By
BEFORE & AFTER

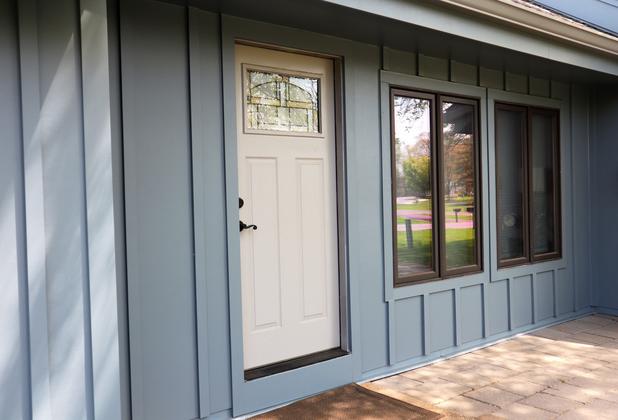

The front entry was also given a face lift. All Hardie siding & trim on this project are Boothbay Blue. This adds to the contemporary design this owner was trying to acheive. All Hardie siding & trim colors have a matching paint sold by Sherwin Williams. New light fixtures were installed along with the siding.

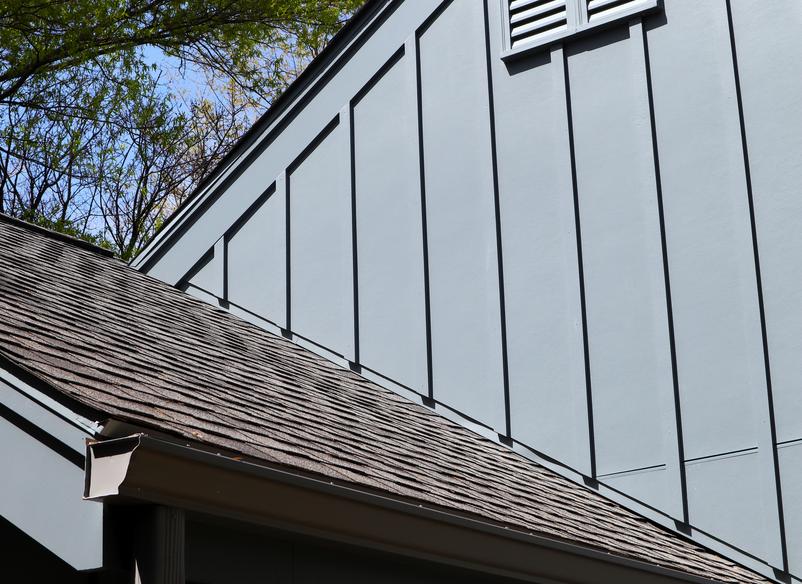

This photo shows the 2" roofline clearance detail required by James Hardie. The Hardie panels are 2" above the roofline. Boothbay Blue trim coil is used to continue the color down to the roof. Not all siding contractors are aware these details. Be sure to find Hardie siding contactors directly from their website.

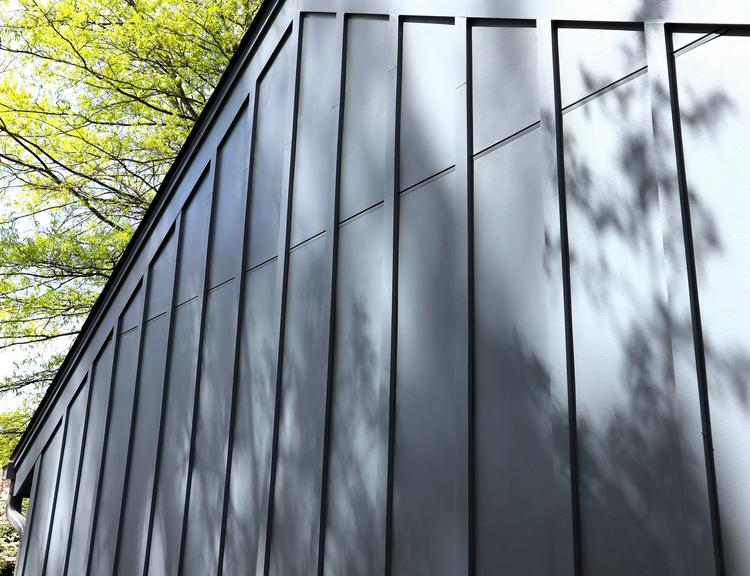

Here is a closer view of the horizontal seam where the Hardie panels meet. Hardie siding panels are available in 10'h. Walls taller than 10' will require a horizontal seam. Z flashing must be installed to prevent water from getting behind the panels. The panel above requires a 1/4" clearance and should not be caulked. This flashing can be made fro trim coil matching your Hardie siding color. Ask your siding contractor about simple ways to differentiate your home.
